Here is another example of the winscreen push button. This car also has the very rare option of a cigarette lighter positioned just above the heater controls BN4-L-O-32256 Todd Schneider

The Boot (Trunk ) area is lined in  coloured Armacord matching the car's interior trim Abingdon cars  had black Armacord irrespective of the interior colour of the car

The windscreen washer bottle was the Trafalgar glass type which continued into the BN6 production until car 1182 when it was replaced by the plastic Tudor type

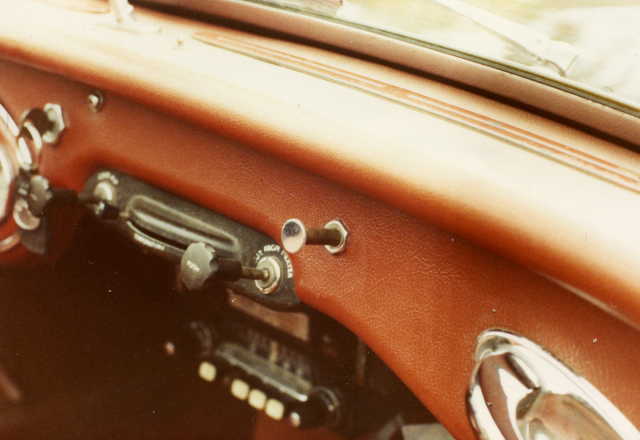

The windscreen washer push button was chrome plated without markings. Abingdon cars had larger, black Bakerlite buttons with white lettering

back                                                                                                         next

The Longbridge cars only had one windscreen spray nozzle

_______________________________________________________

Photo Jim Lesher

Armacord

Rear Quarter Panel and Seat Area

Windscreen Washer System

Photo Peter Svilans

Photo Rich Chrysler

Points to note are: 1. the exposed bump-stop box screw in the vinyl covered wheel arch 2. the single eared screw holding the sidecreen (which is in beautiful condition!) 3. The sidescreen is of the later 'Abingdon' type introduced towards the end of the Longbridge production

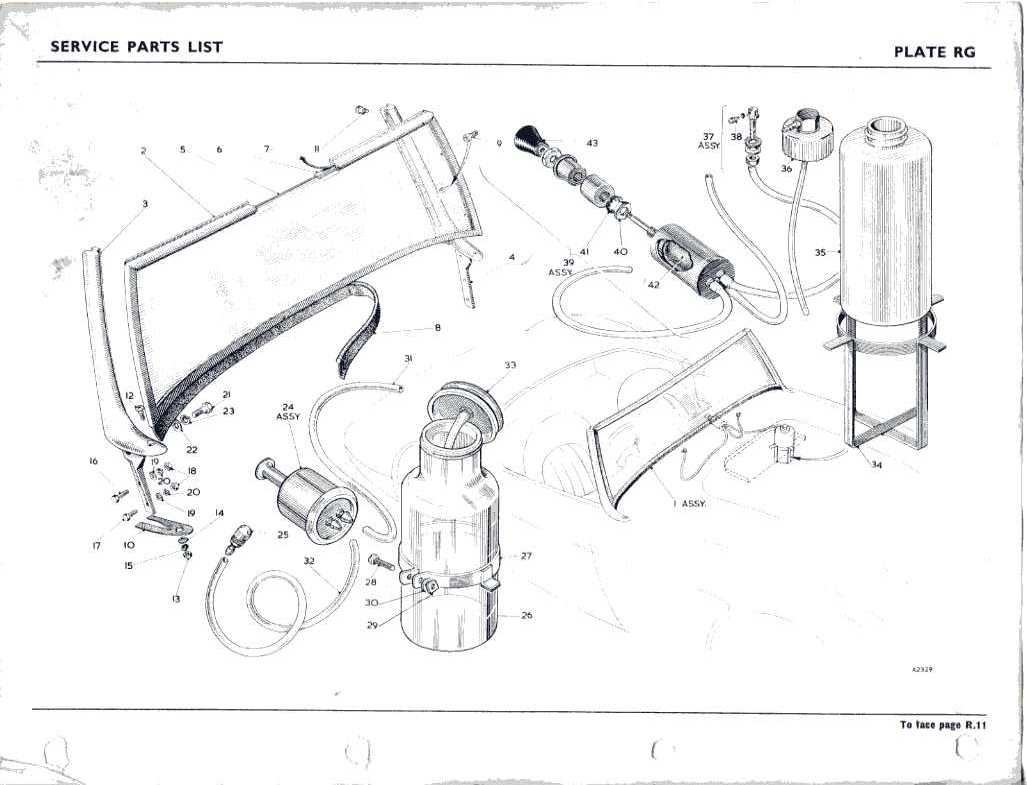

Service Parts List showing the Longbridge system on the left and the replacement Abingdon system on the right.

Here is a view of the area behind the rear seat back  of another original car. The leathercloth can be clearly seen and covers the entire area behind the seats

100-Six

Photo Peter Svilans

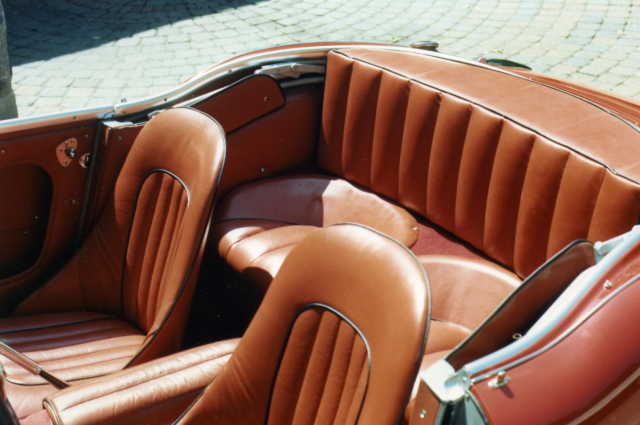

Points to note are: 1. This removable rear seat back is sightly wider than the later Abingdon cars and has a different part number 2. The rear bulkhead (not shown) behind the rear seat back is covered in matching coloured leathercloth. (Not the case on Abingdon cars) info - Peter Svilans

Longbridge Features                  Page 2,

Photo Peter Svilans

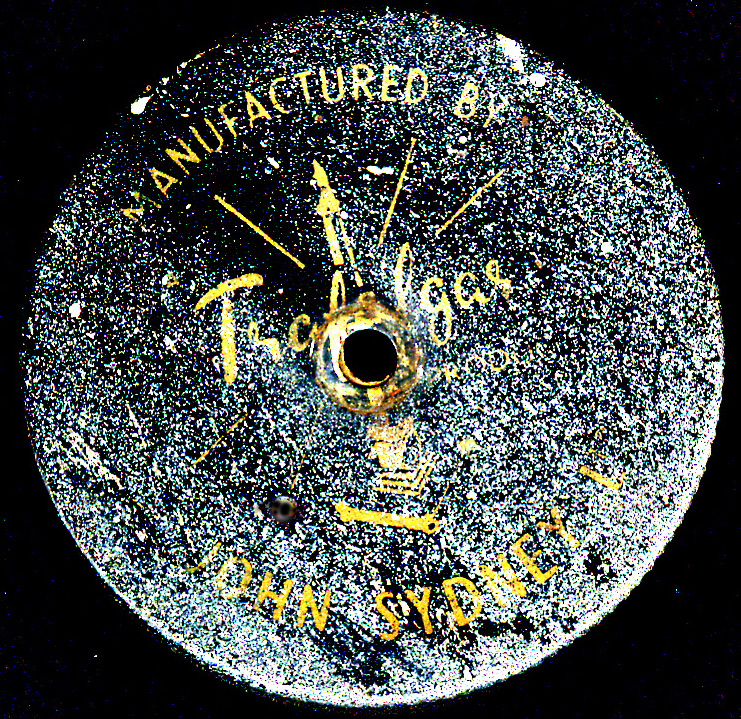

The top of the bottle had the Manufacturers name printed on it. John Sydney Ltd  photo Doug Reid

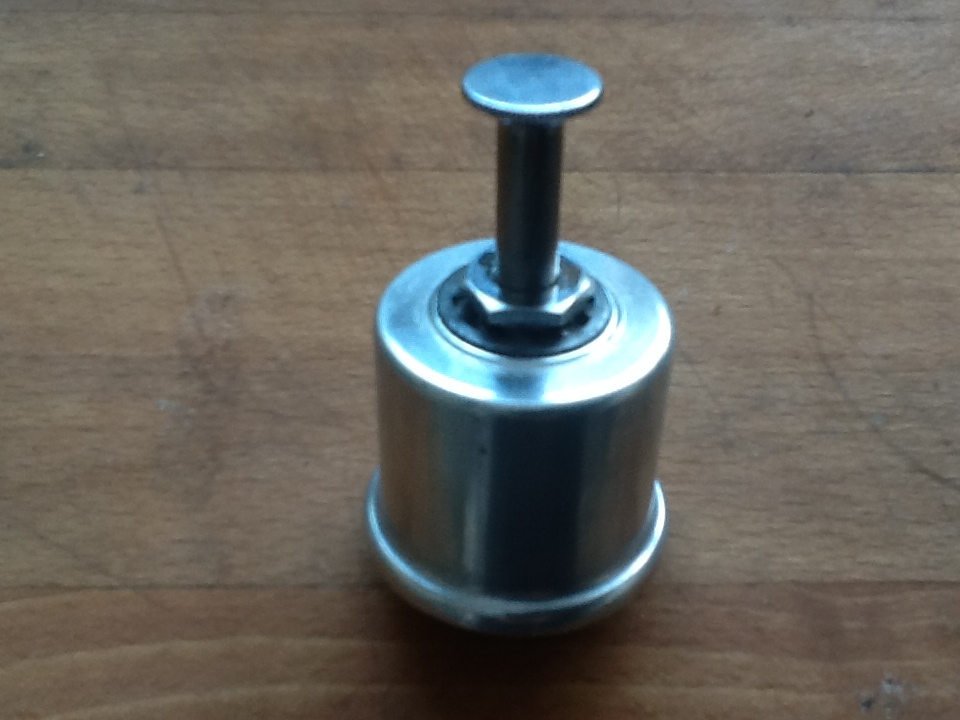

Great photo of an original Longbridge washer pump Photo Nils Nystrom
